170W 12V Monocrystalline Solar Panel

EV Charger AC Wall Mounted Charging Pile
EV Charger AC Wall Mounted Charging Pile
EV Charger AC Wall Mounted Charging Pile
  • Rated Power170W
  • Solar CellMonocrystalline
  • Maximum Power Voltage19V
  • Maximum Power Current8.95A
  • Open Circuit Voltage23.5V
  • Short Circuit Current9.39A
  • Weight19.62lbs
  • Size43.7×30.3×1.4 inches
  • Temperature range-40°C~+85°C
  • Temperate coefficient of Isc(010+/-0.01)%/℃
  • Temperate coefficient of Voc-(0.38+/-0.01)%/℃
  • Size of extension cable4mm²(11AWG)/MC4 Connector
  • Length of extension cable 90cm(2.95ft)
  • Frame Aluminum alloy frame

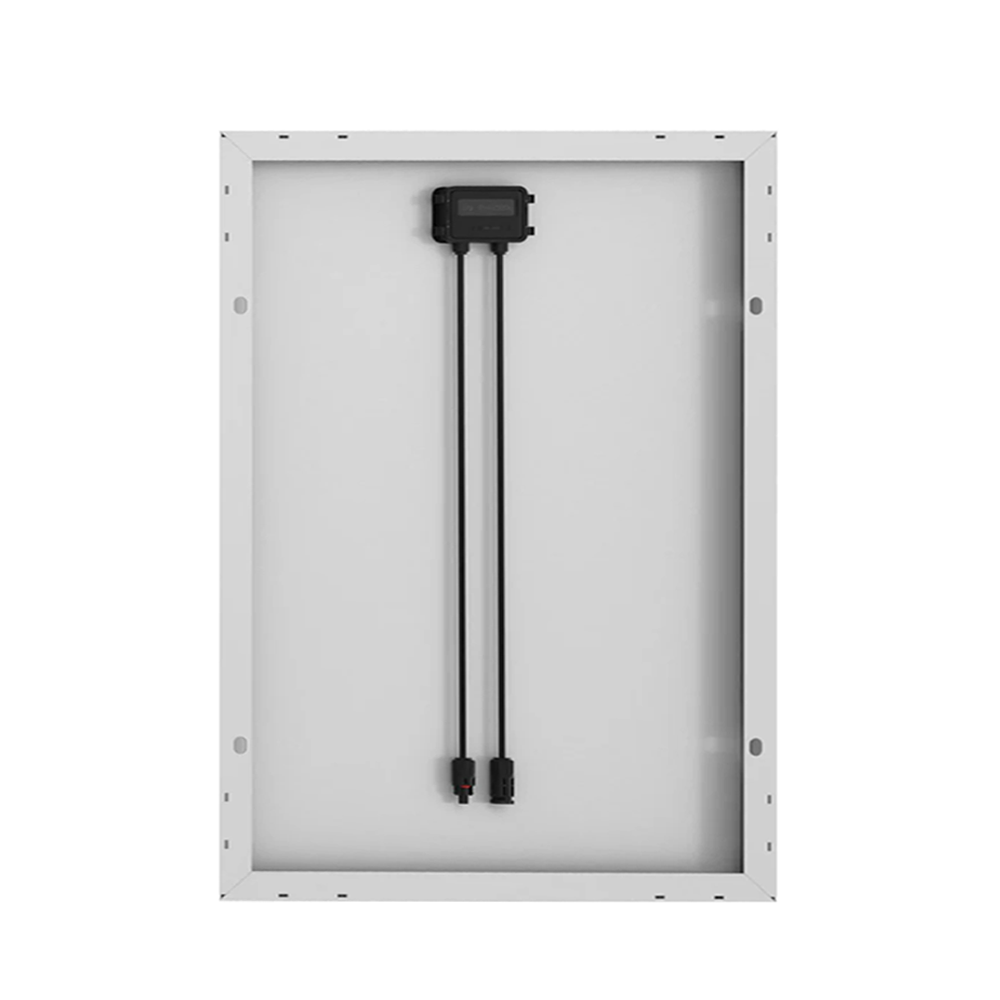

Hemuvision 170W 12V monocrystalline solar panel is primarily used in off-grid applications such as RVs, boats, sailboats, yachts, trucks, cabins, campers, tents, trailers, and golf carts, and is also suitable for homes and cottages. It can generate up to 800WH of electricity per day, depending on sunlight conditions. Each solar panel comes with a pair of 35-inch cables. The IP-65 waterproof junction box is pre-installed with bypass diodes to minimize power loss due to shading and ensure excellent performance in low-light conditions. The panel can withstand high wind pressure (2400Pa) and snow load (5400Pa), features a 3.2mm low-iron glass surface, and the monocrystalline modules are secured by a 35mm wide aluminum alloy frame, which is 2-5mm wider than other similar products.
