48V 314Ah Standable LiFePO4 Battery

EV Charger AC Wall Mounted Charging Pile
EV Charger AC Wall Mounted Charging Pile
EV Charger AC Wall Mounted Charging Pile
EV Charger AC Wall Mounted Charging Pile
EV Charger AC Wall Mounted Charging Pile
  • Battery Capacity314Ah
  • Battery Power16.08kWh
  • Rated Voltage51.2V
  • Voltage Range40V~58.4V
  • Maximum Charge/ Discharge Current200A
  • Charge Temperature Range0-55℃
  • Disharge Temperature Range-20℃~ +55℃
  • Maximum Charge Voltage58.4V
  • Weight293.2lb/133kg
  • Size32.56*20.47*9.92in/80.7*52*25.2cm
  • Circuit Breaker200A
  • Max parallel number16PCS

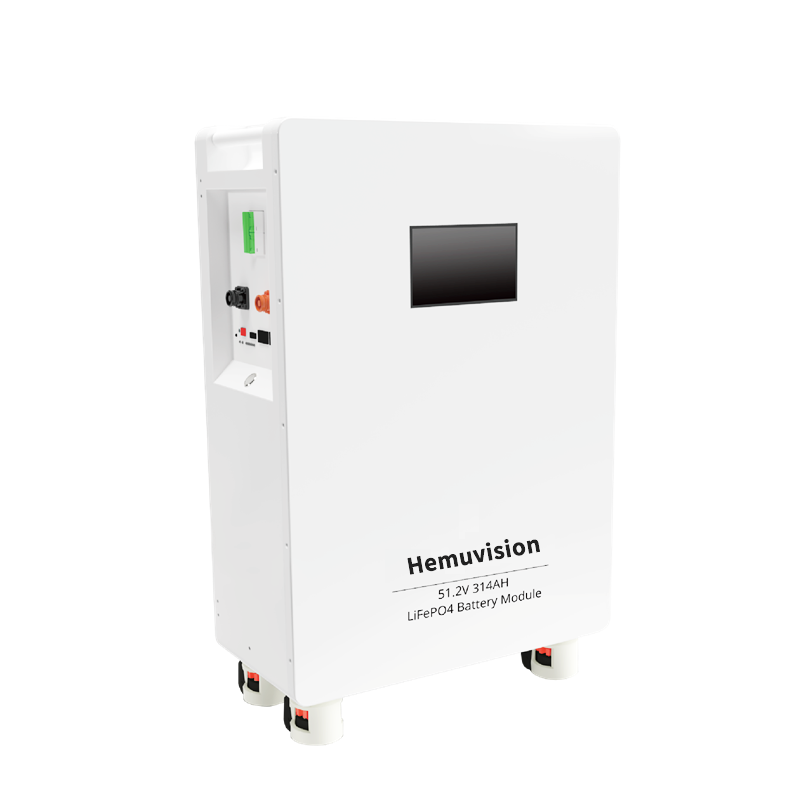

Hemuvision 48V(51.2V) 314Ah LiFePO4 battery boasts exceptional safety performance and a long lifespan. It is ideal for low-voltage off-grid and hybrid household energy storage systems, and can be installed in garages, log cabins, workshops, sheds, and other similar locations.
Composed of 16 314AH Class A lithium iron phosphate batteries, it boasts a cycle life of up to 8000 cycles. Equipped with a 200A Battery Management System (BMS), this is a professional household energy storage BMS, featuring a 7-inch color touch screen and an advanced pre-charging circuit with cell balancing function. A 200A circuit breaker provides protection for the batteries, offering intelligent protection in case of battery short circuits and BMS malfunctions.
When you have multiple groups connected in parallel, we will provide a free busbar configuration. When the total power of your inverter exceeds 10KW but is less than 30KW, we will use a 400A busbar to connect the batteries in parallel, ensuring the safety of your energy storage system at its maximum power performance.
